Cryogenic liquid storage tank is a series of products about first/second/third type pressure vessels manufactured by our company, the products strictly in accordance with the TSG21-2016 <Stationary Type Pressure Vessels Safety Technical Supervision Rules>GB/T150-2011<pressure vessels>, GB/T18442-2019<stationary vacuum insulation cryogenic pressure vessel>,design, manufacture, inspect and accept.
Cryogenic liquid storage tanks is for double wall,vertical (horizontal) structure,adopt vacuum powder insulation,with the advantage of compact structure,low daily evaporation rate,small footprint,centralized control,safe,reliable,easy operation and maintenance.
Technical Parameter:
| Effective volume(m3) | Working pressure(MPa) | Demension (mm) | weight(Kg) | Working medium | Placement type |
| 5 | 0.8 | 2000*2000*5130 | 3412 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 10 | 0.8 | 2100*2100*7170 | 5378 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 15 | 0.8 | 2500*2500*6912 | 6415 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 20 | 0.8 | 2500*2500*8756 | 8255 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 30 | 0.8 | 2900*2900*8870 | 12899 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 5 | 1.6 | 2000*2000*5130 | 3945 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 10 | 1.6 | 2000*2000*7895 | 6787 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 15 | 1.6 | 2400*2400*7552 | 8628 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 20 | 1.6 | 2400*2400*9371 | 10744 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
| 25 | 1.6 | 2700*2700*8980 | 13500 | liquid oxygen liquid argon liquid nitrogen | vertical or horizontal |
(Specific cryogenic liquid storage with given pressure and effective volume can be manufactured as customer required)

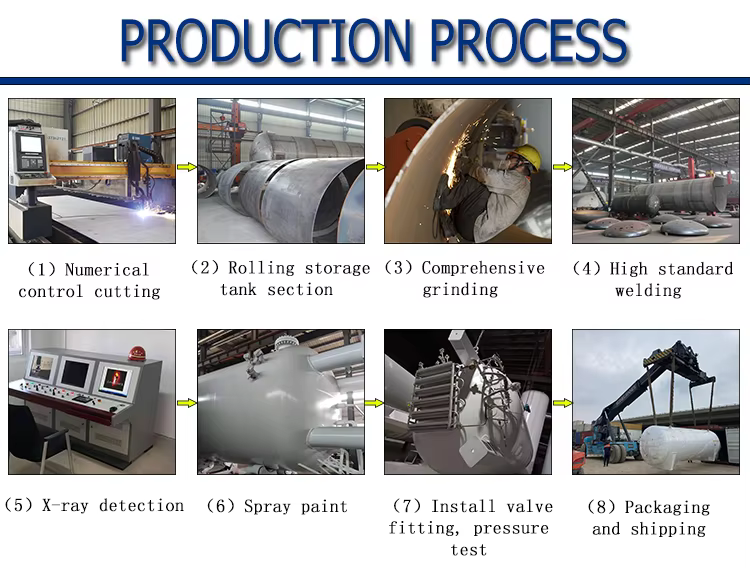

Structural features:
1.Compact structure, cover a small area.
2.Storage tank and supercharger is a closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.
3.With the pressure adjusting device, the user according to the need to adjust the regulator T,You can discharge the required pressure of the liquid,pressure is stable, easy to operate.
4.Tank provided with a tanker filled joints, can shipping liquid to the vaporizers, tankers.
5.Insulation material perlite and sorbent of storage tanks have been special treatment, to make sure the storage tank have more longer vacuum life. At the same time the storage tank with Metal thermocouple regulation,you can measuring the interlining vacuum when needed.
